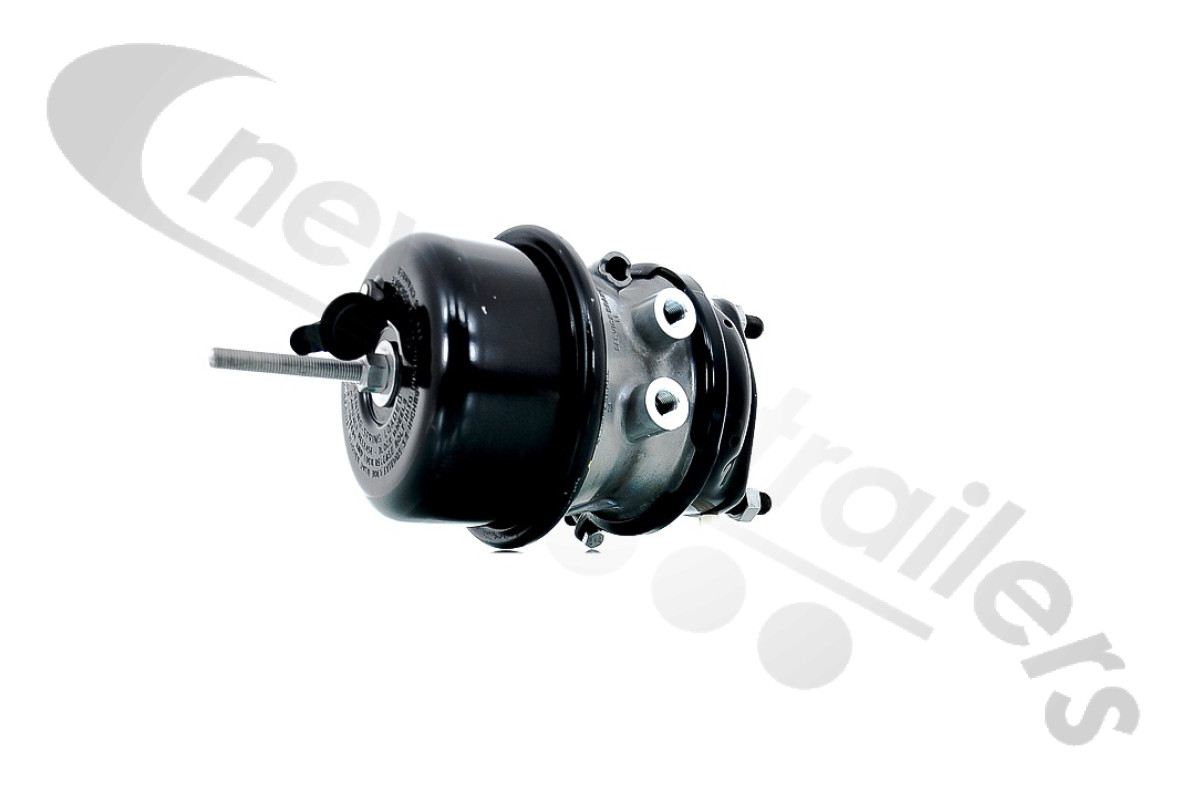

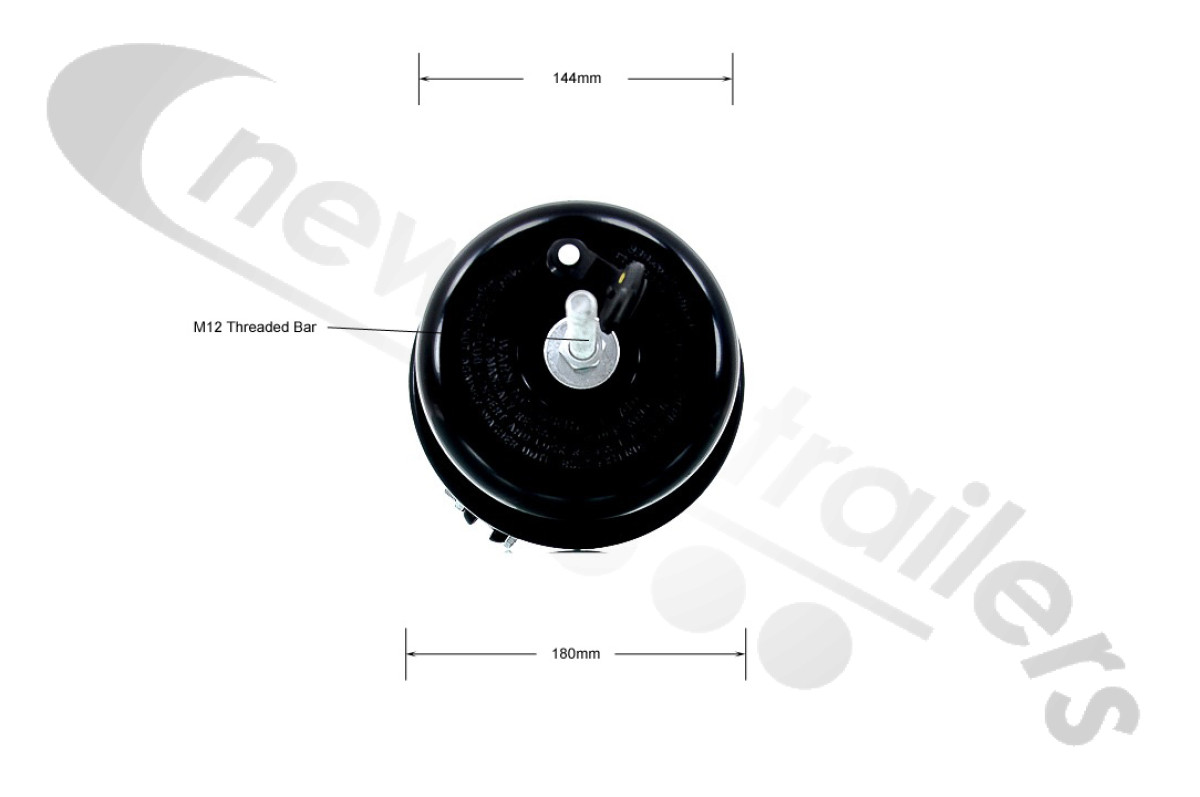

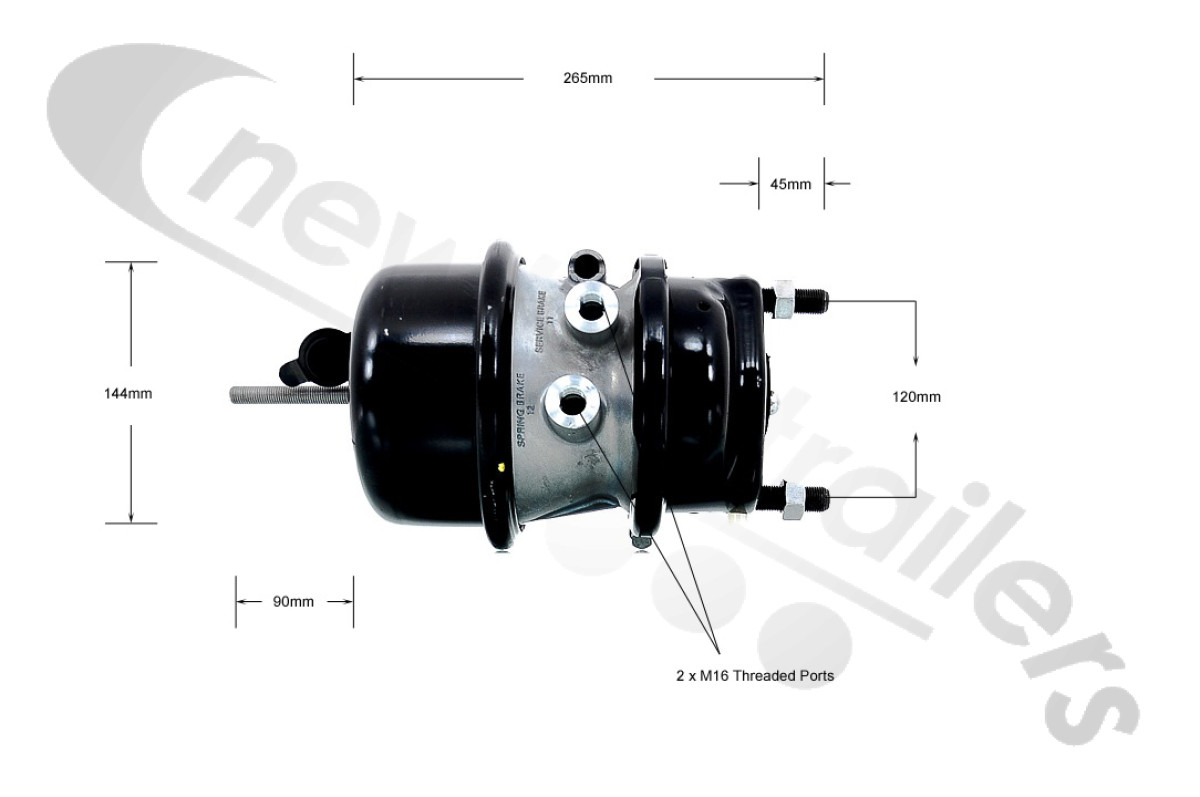

Brake Chamber Type 16/24 For Knorr Caliper Disc Brake

Double Diaphragm Spring Brake 925 384 010 0 Technical Sheet
1. Max. operating pressure: 10.2/8.5 bar
2. Type: 16/24 IBV
3. Stroke: 57/57
4. Output force S: 6500 N/ 20 mm
5. Release pressure: 5.5 bar
6. Output force D: 8600 N/ 8.5 bar
7. Return-spring force: 230 N
8. Port threads: M 16x1.5
9. with fording ability: no
10. Push-rod length: 15
11. Con-rod: Ø16-R8
12. Angle a: 135°
13. Angle b: 0°
14. Angle c: -90°
15. Angle d: -
16. Bolt threads: M 16x1.5
17. Bolt lengths: 43
18. Distance between bolts: 120.7
19. Opposite: -
